SPECIFICATIONS

Brand Name: IdeaFormer

Choice: yes

High-concerned chemical: None

Item Type: Heatbed

Model Number: PEO PET Elegoo Centauri Carbon Build Plate

Origin: Mainland China

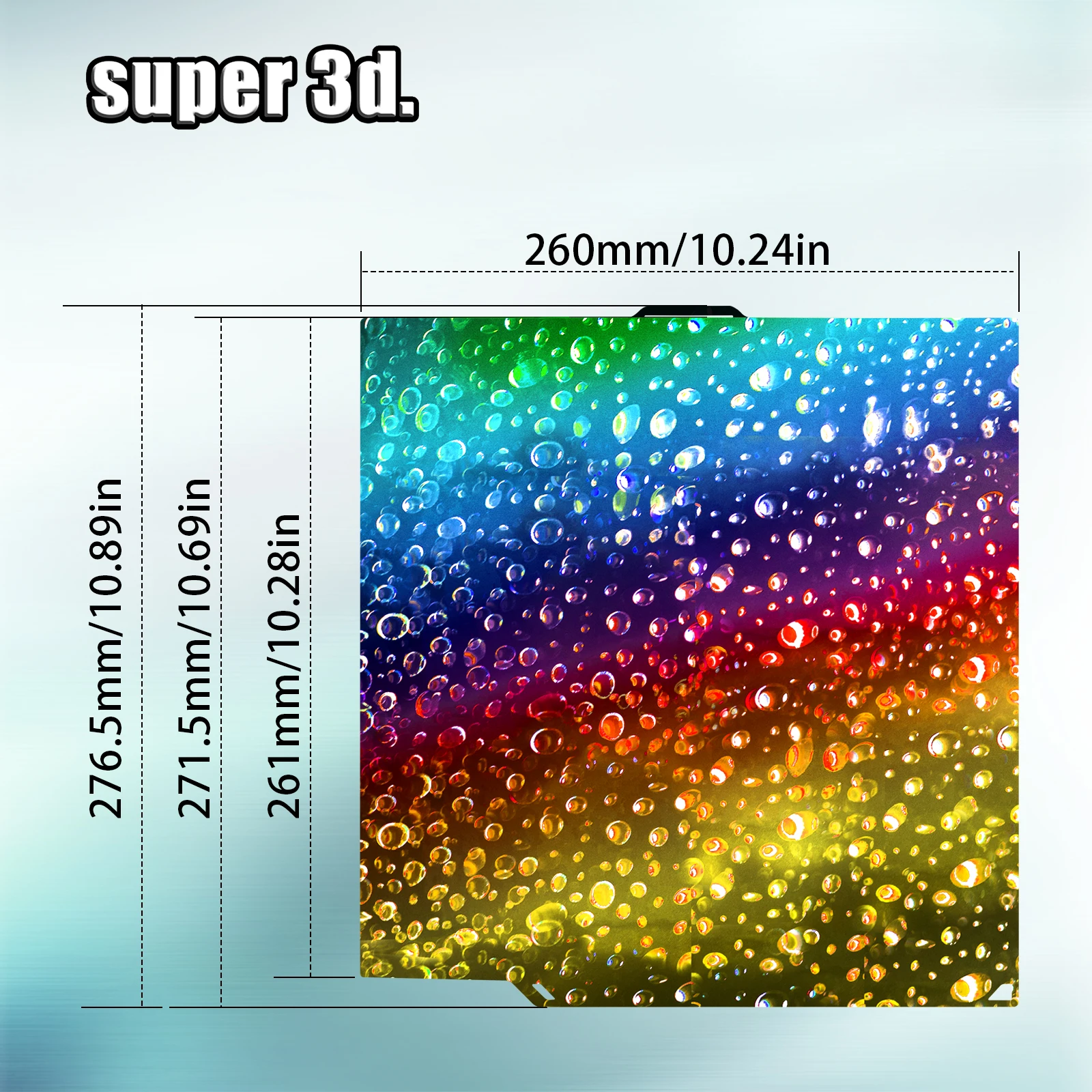

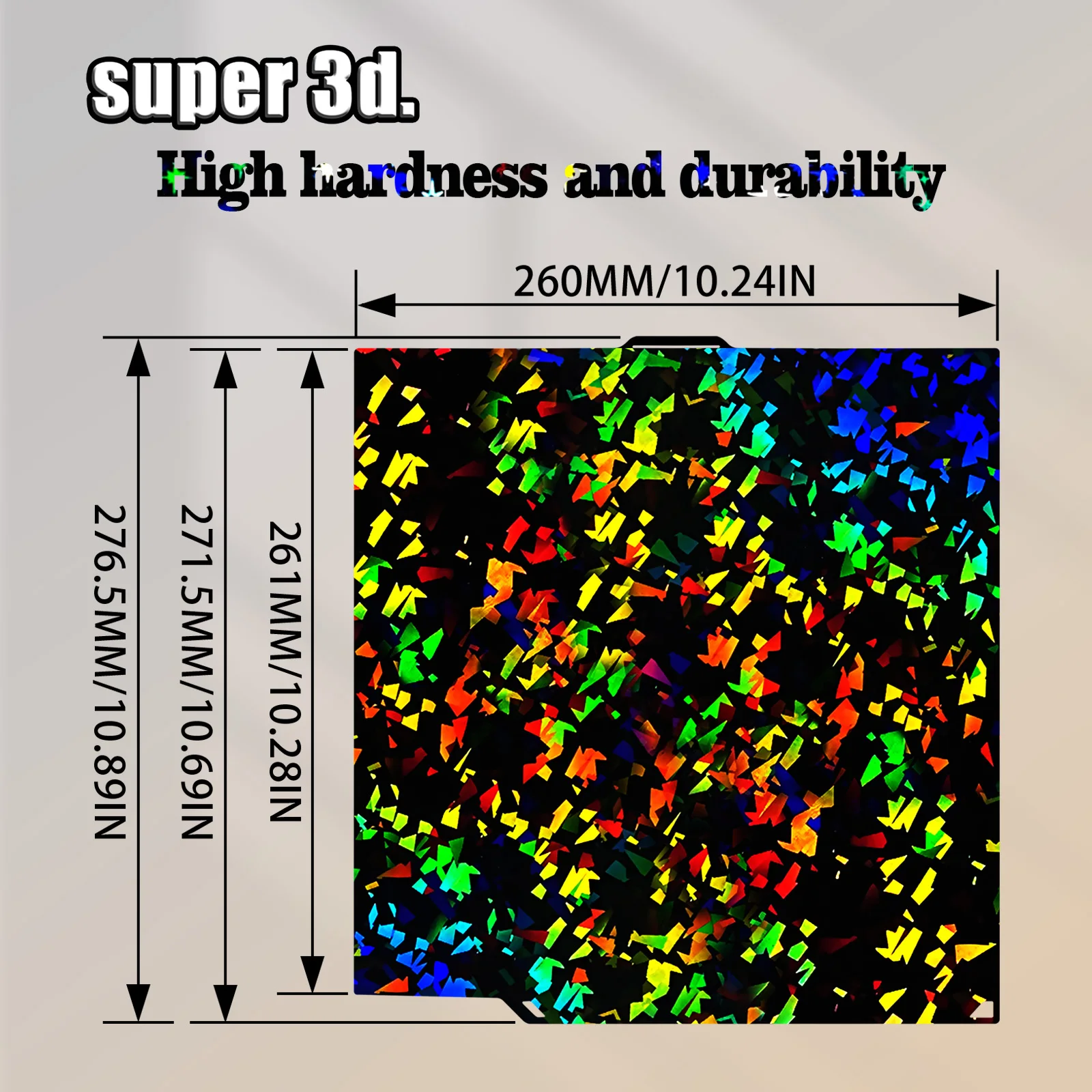

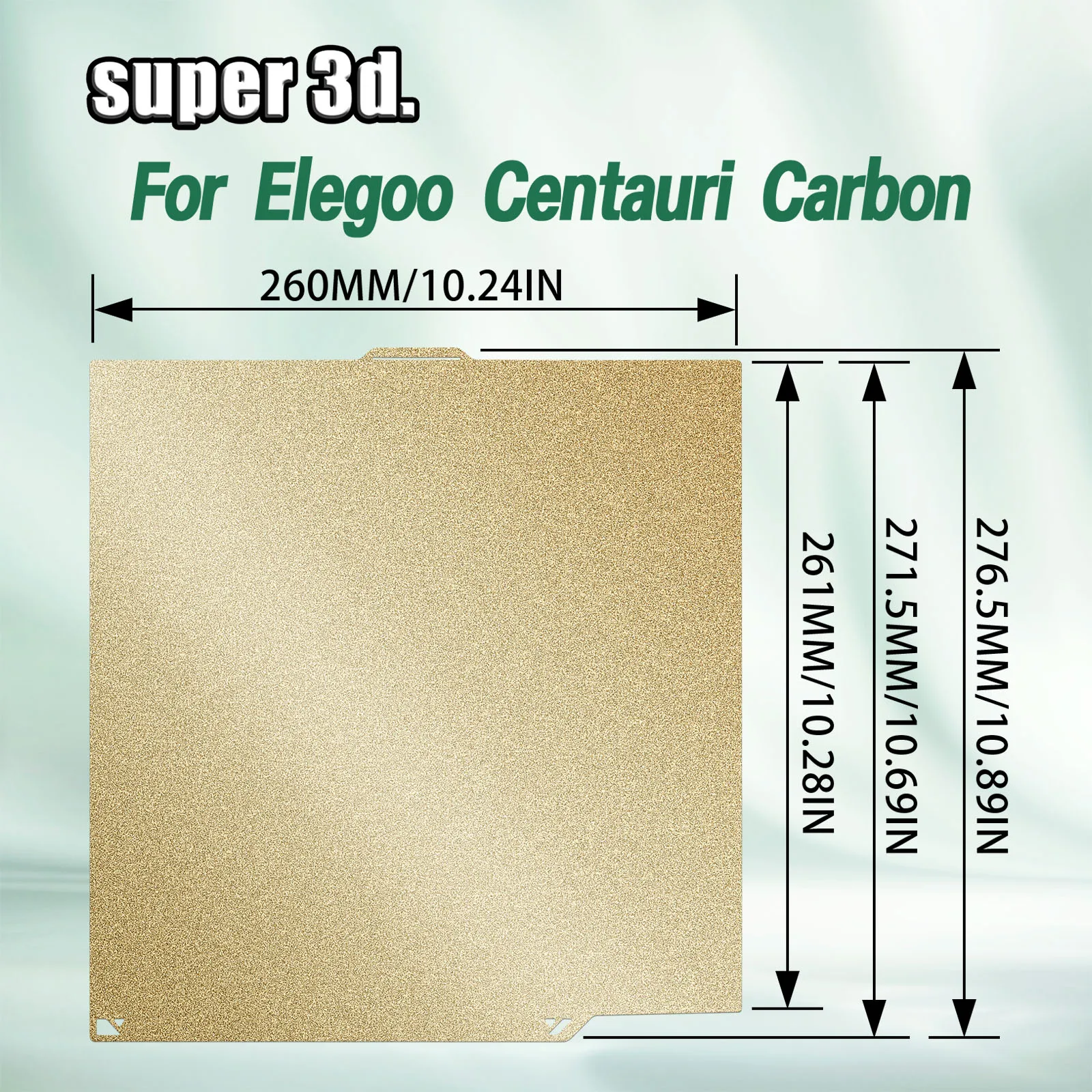

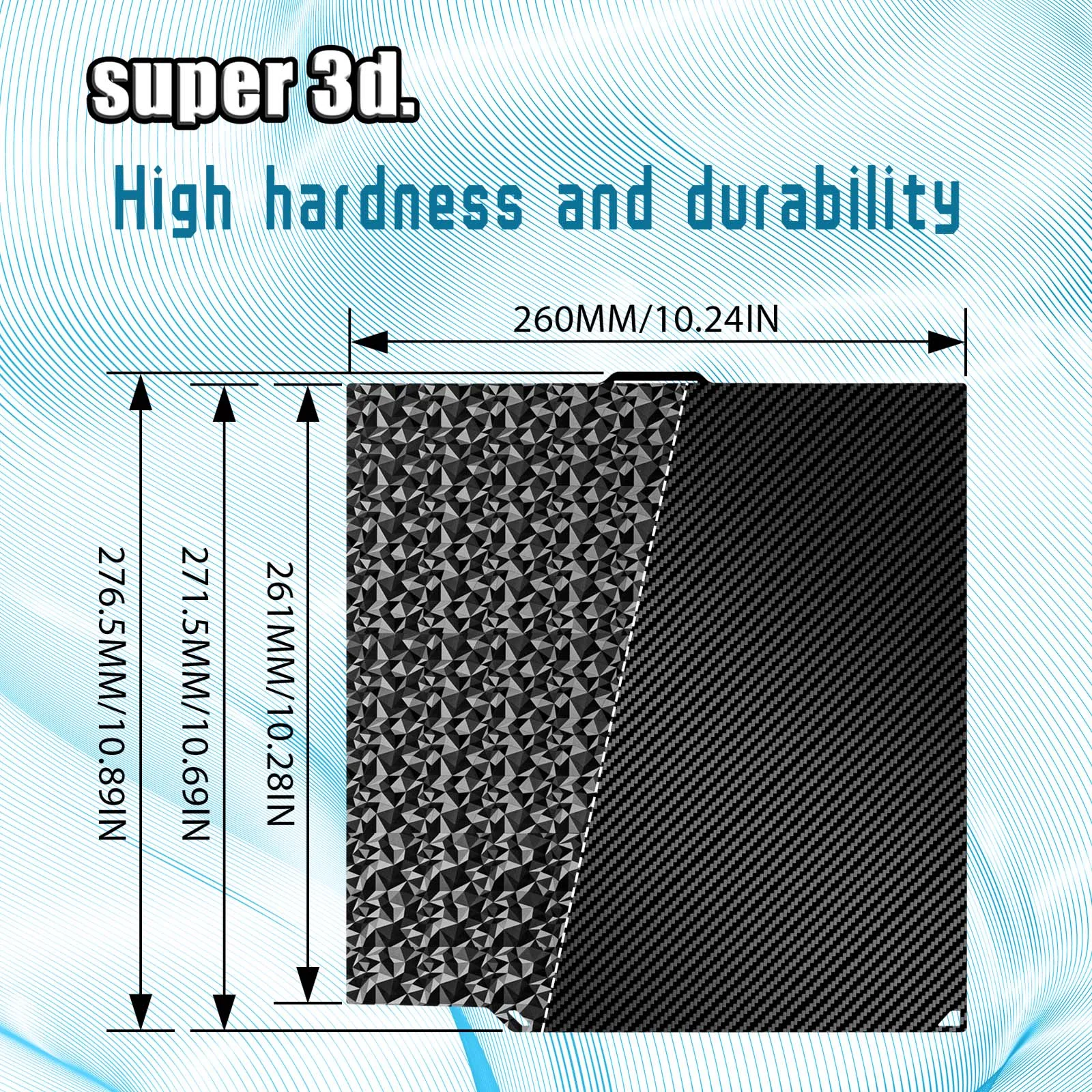

Size: 260x271mm

Suitable for: Elegoo Centauri Carbon

semi_Choice: yes

Item you may like

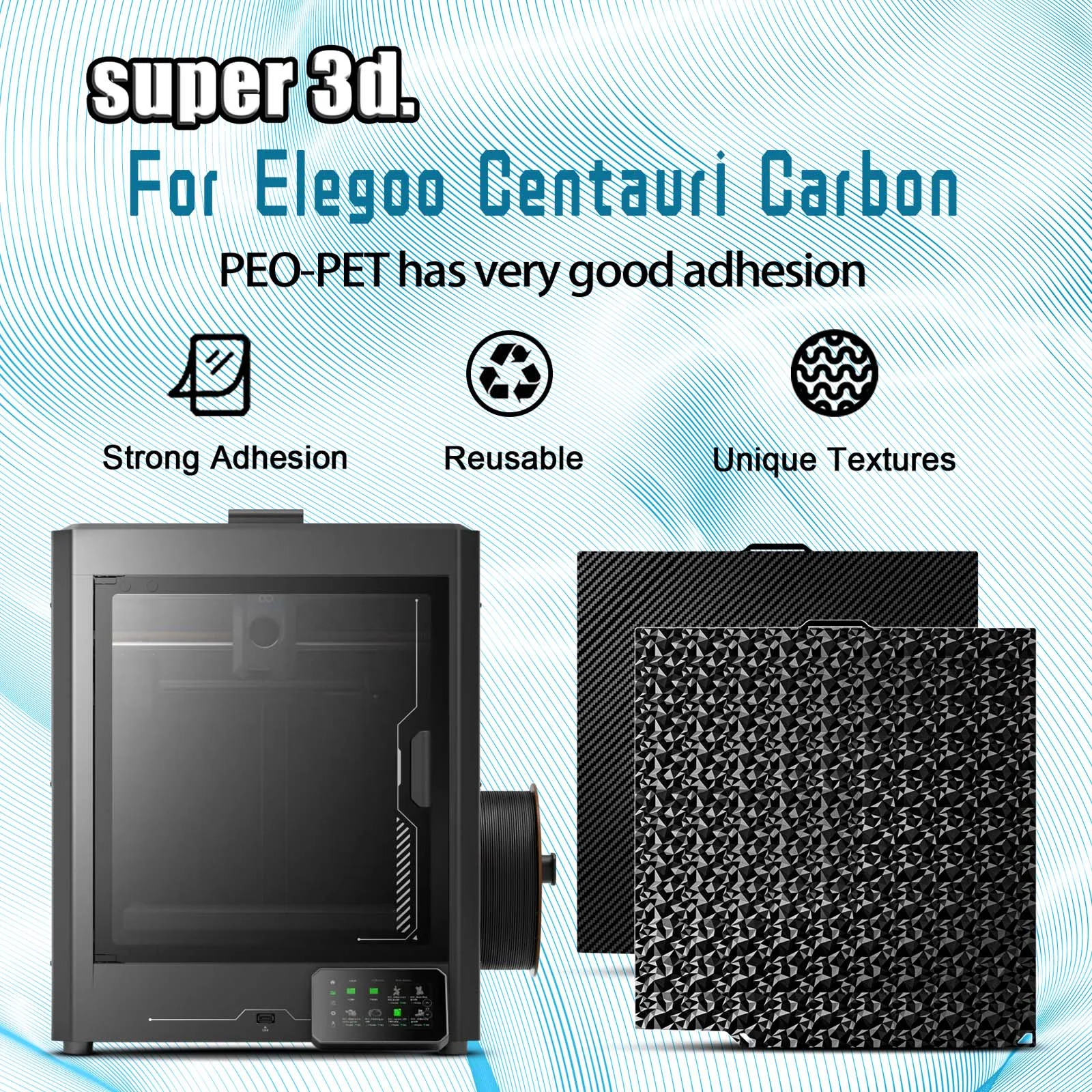

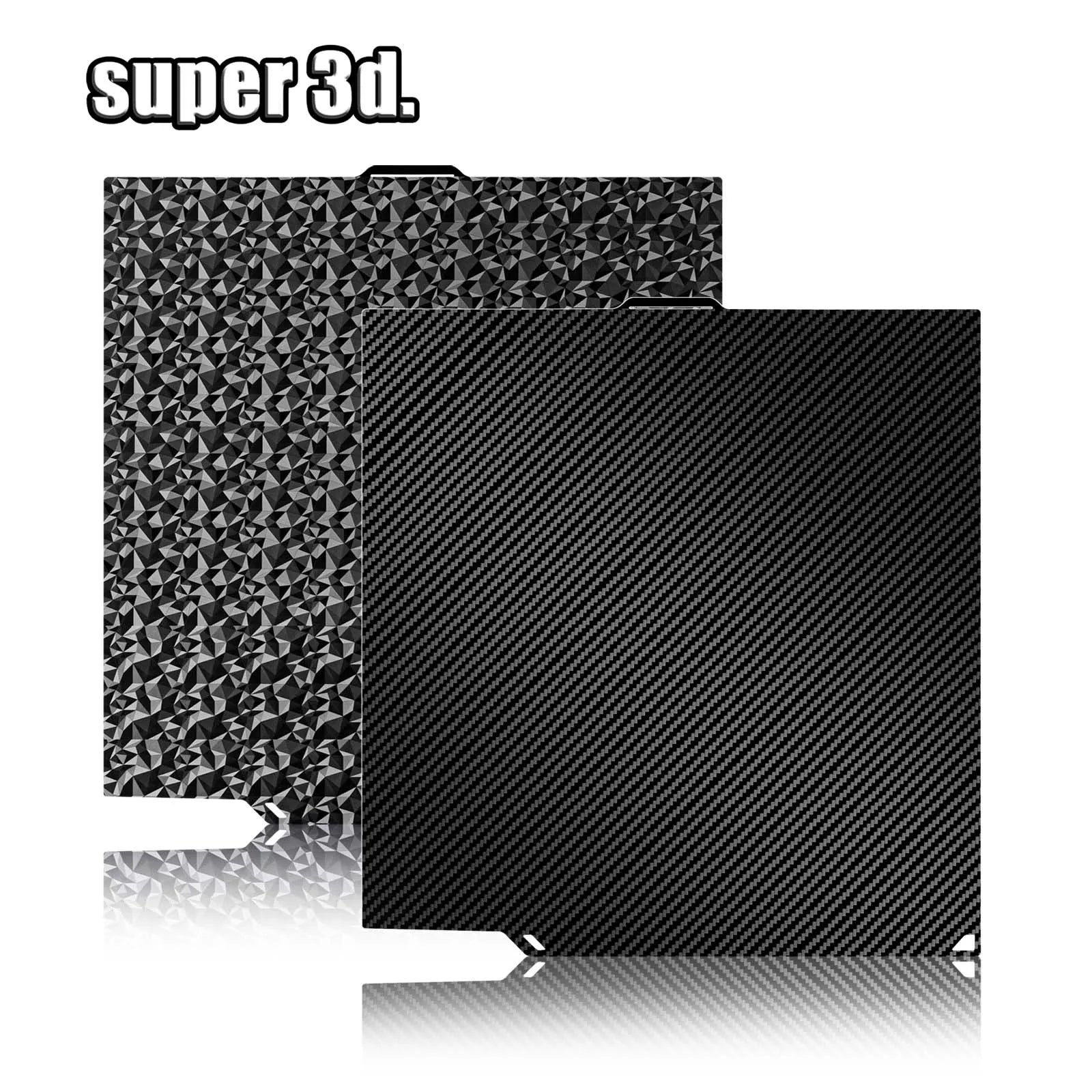

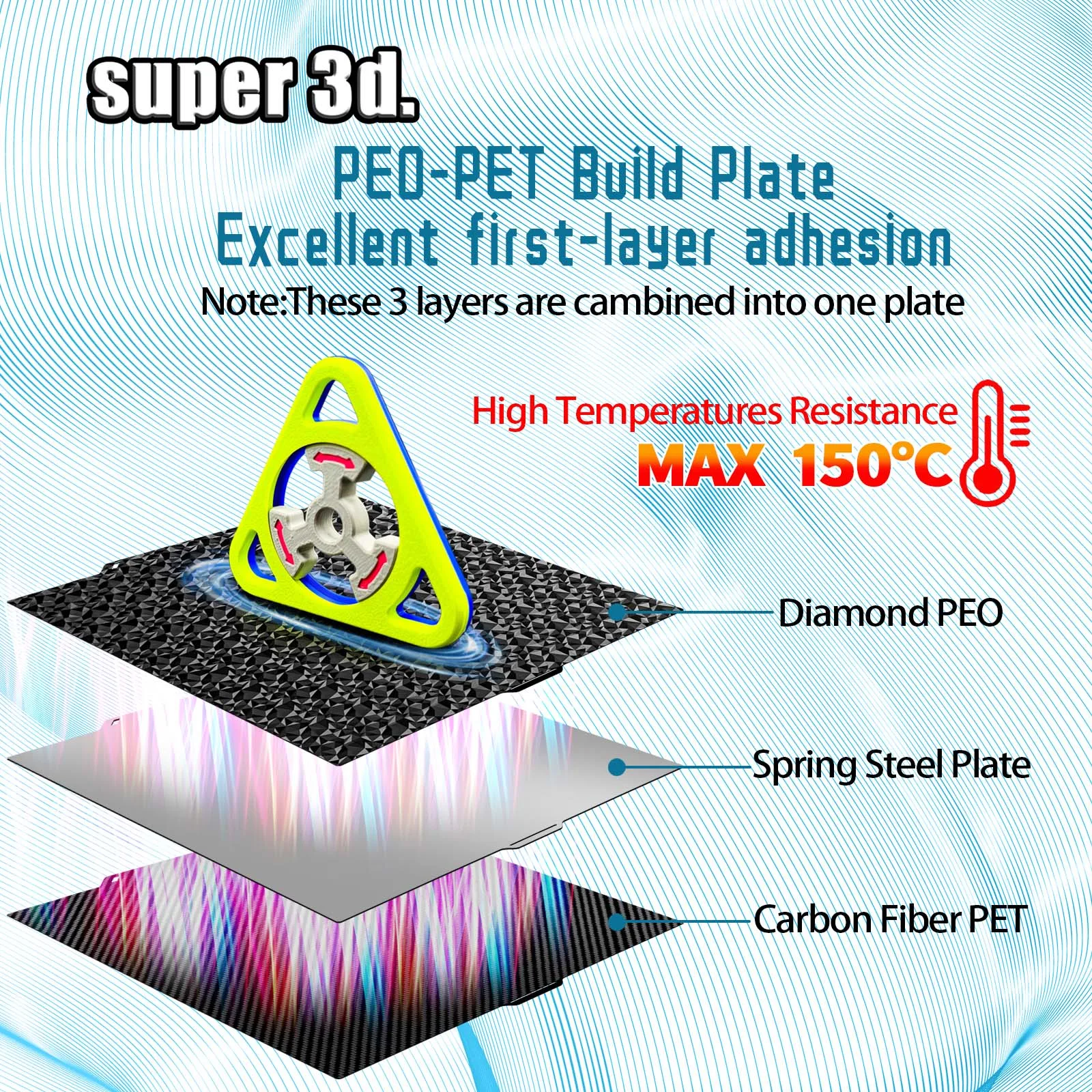

1.PEO-PET

Material: PEO film + PET film + 0.4mm steel plate

High temperature resistance: Maximum temperature resistance 150℃ Long-term temperature resistance up to 120℃

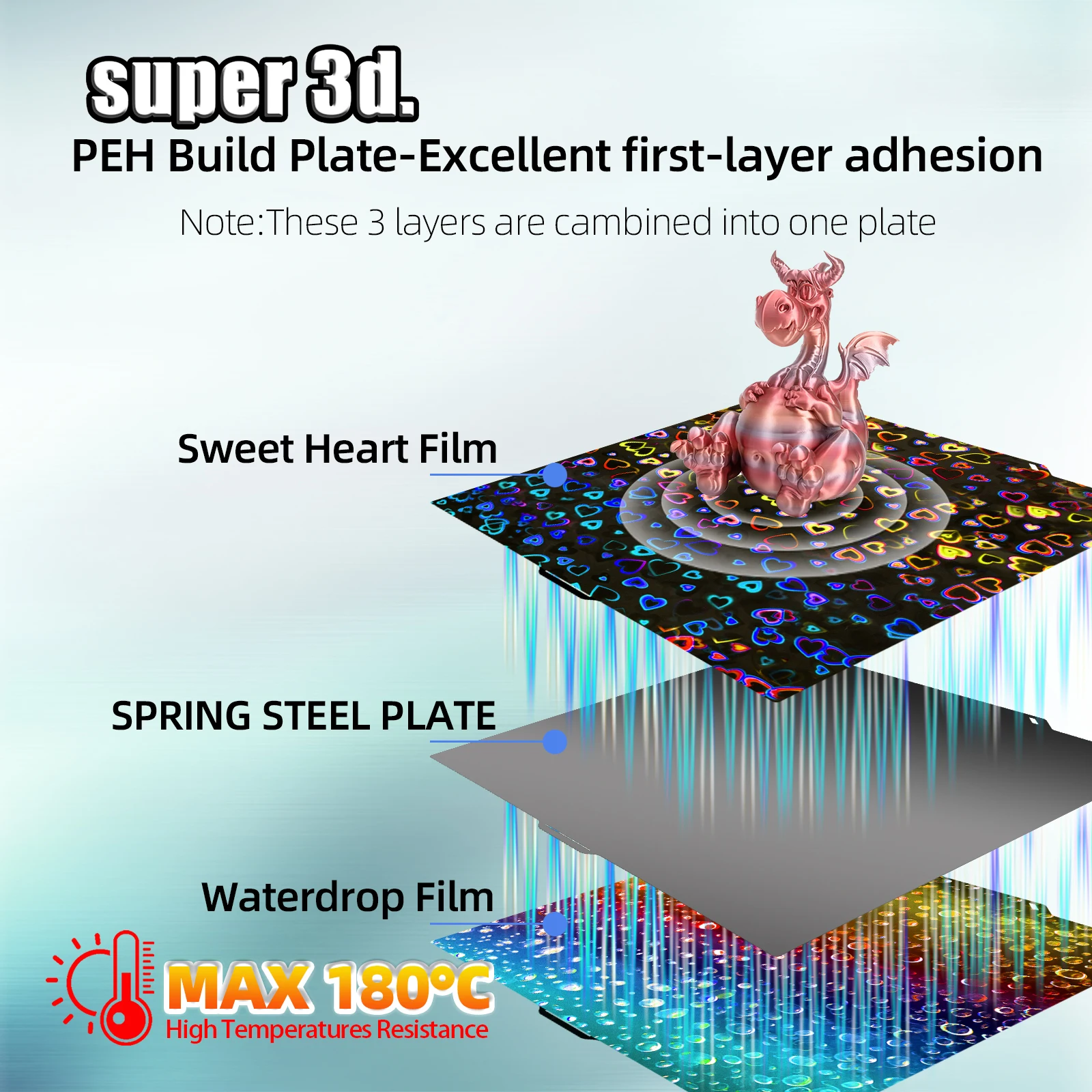

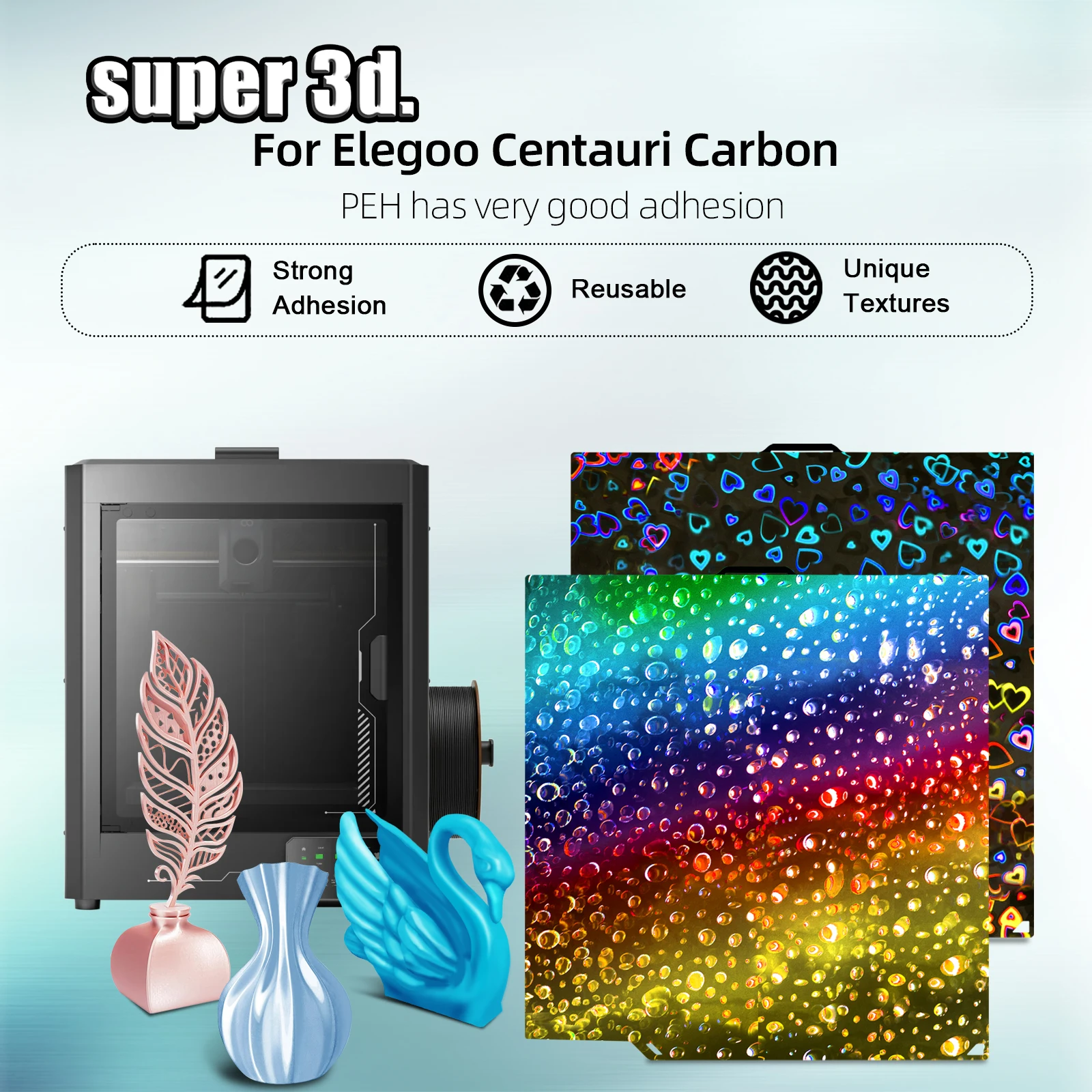

2.PE

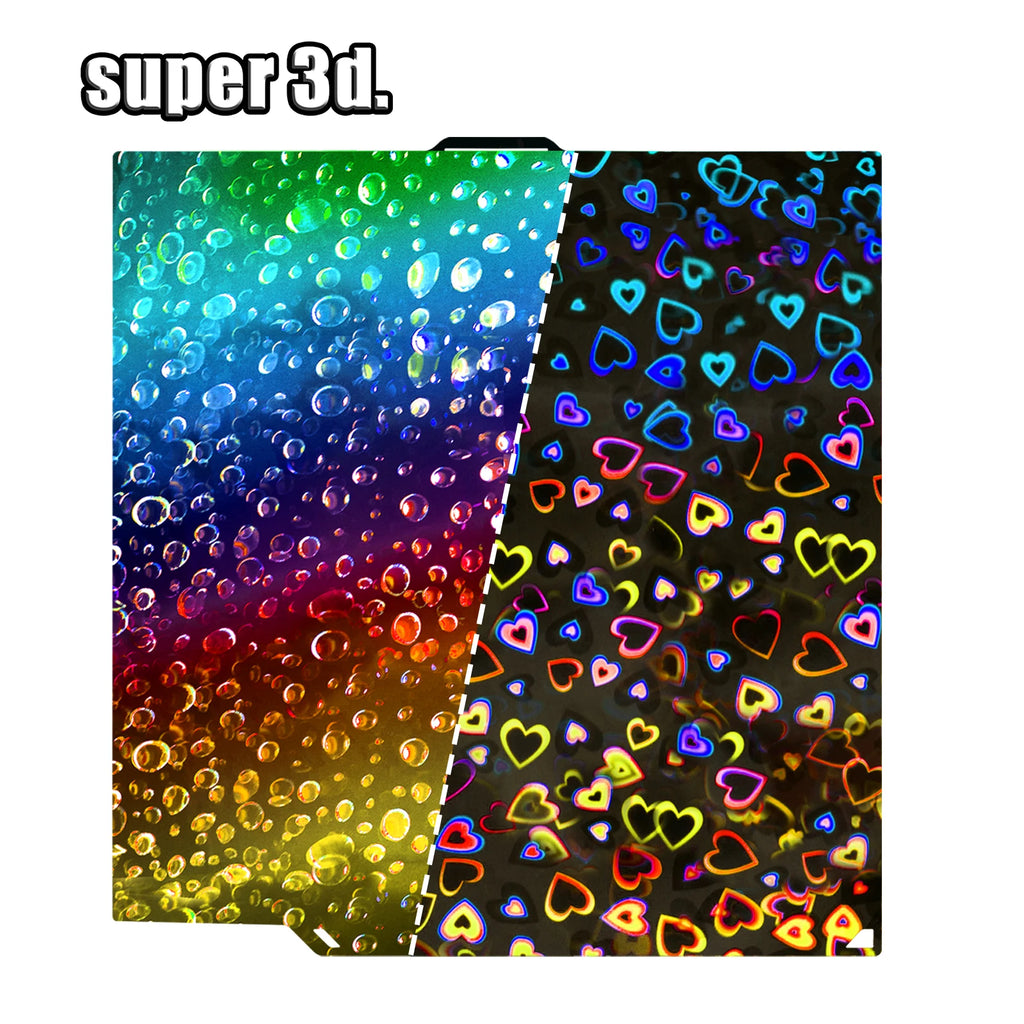

Material: PEH film (red heart + raindrop pattern) + steel plate

Heat resistance: Maximum temperature resistance 180℃ Long-term temperature resistance 160℃

3.PE

Material: Polyetherimide (PEI) double-sided spraying

Heat resistance: Maximum temperature resistance 300℃ Long-term temperature resistance up to 260℃

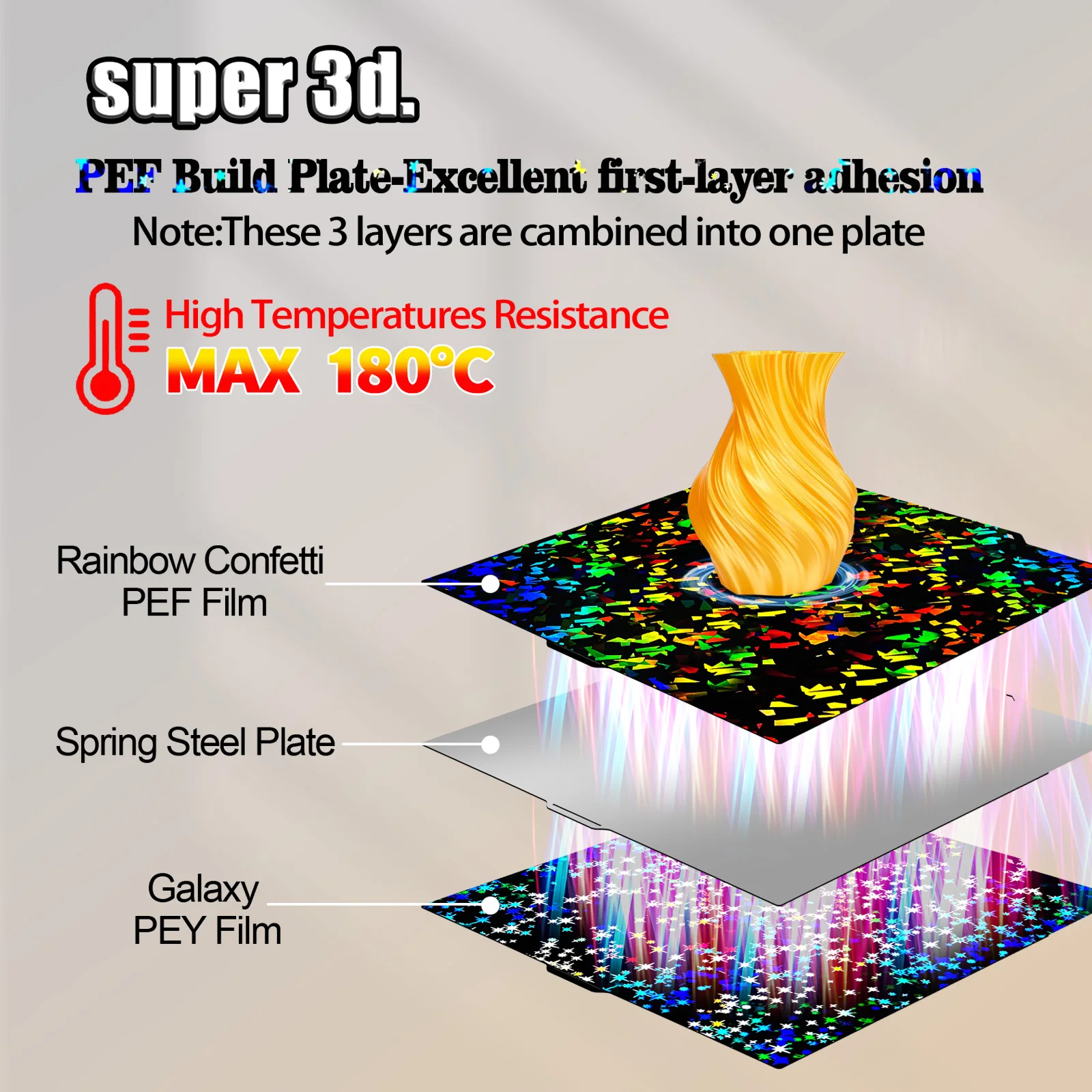

4.PE

Material: PEF film (star + fragment pattern) + steel plate

Heat resistance: Maximum temperature resistance 180℃ Long-term temperature resistance 160℃

Advantages and Disadvantages

1.PEO-PET

Advantages:

1. Both sides can be printed, and one hot bed can provide the experience of using two materials;

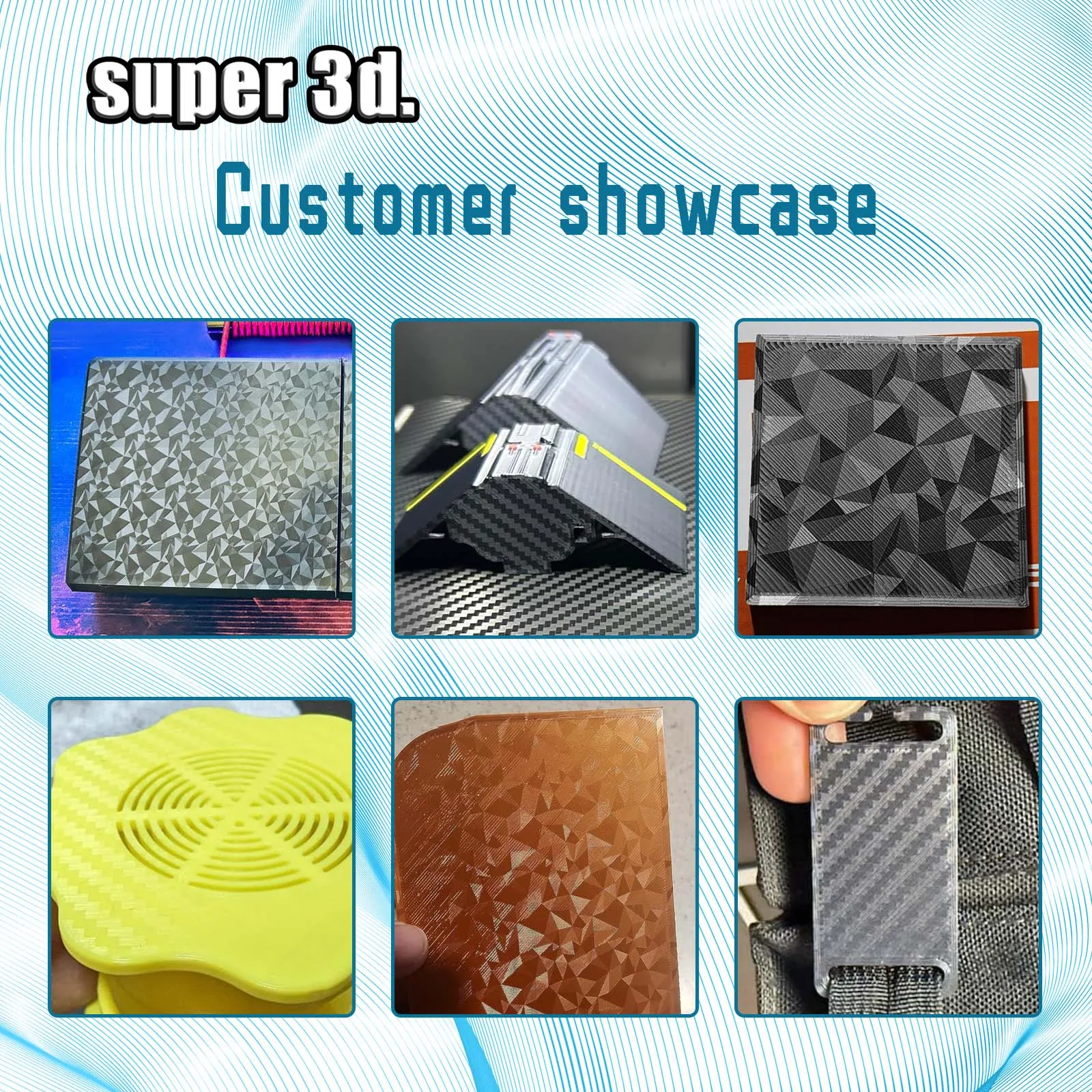

2. PEO has patterns, and PET has carbon fiber patterns, which are more novel;

Disadvantages:

1. PEO/PET may have surface patterns disappear after long-term use;

2. The surface is not scratch-resistant, so avoid using sharp and hard objects to scratch the hot bed

2.PE

Advantages:

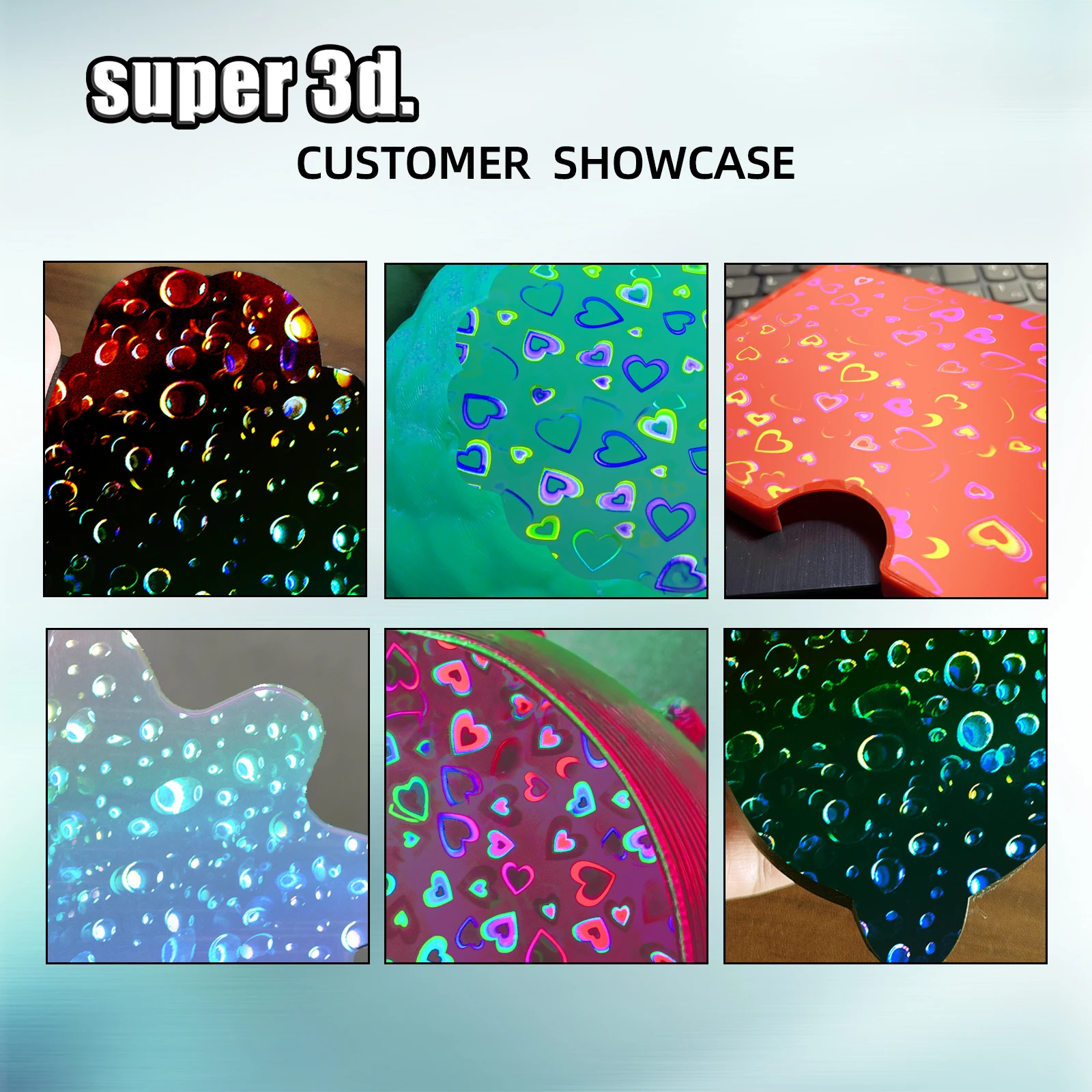

1. The PEH surface has colorful patterns, which is more novel and can leave colorful patterns on the surface of the model after printing

2. Both sides can be printed, and one hot bed can obtain two patterns

Disadvantages:

1. The star pattern on the surface of the model printed on the PEH surface may fade or disappear if wiped with hands or other greasy objects. The pattern can be reproduced by wiping the surface with wet tissues or alcohol

2. If the PEH surface prints ABS or PETG with warped edges, it needs to be sealed or coated with glue

3.PEI

Advantages:

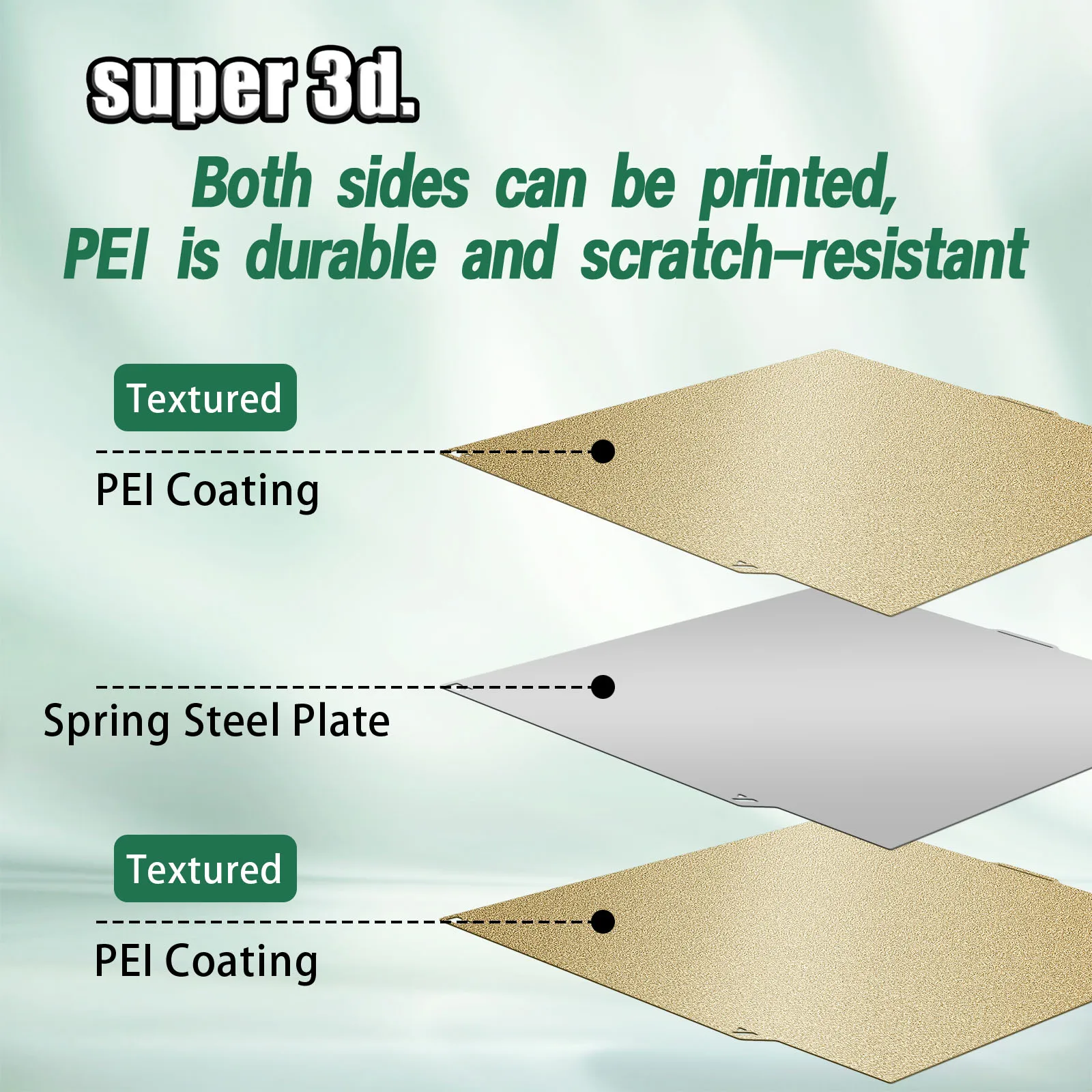

1. Both sides can be printed, if one side is worn, the other side can be used

2. PEI is durable and scratch-resistant, and the bottom of the printed model has a grainy feel

Disadvantages:

1. If printing high-temperature materials such as ABS, it may be necessary to seal the box for printing

Or apply glue on the hot bed to assist adhesion

4.PE

Advantages:

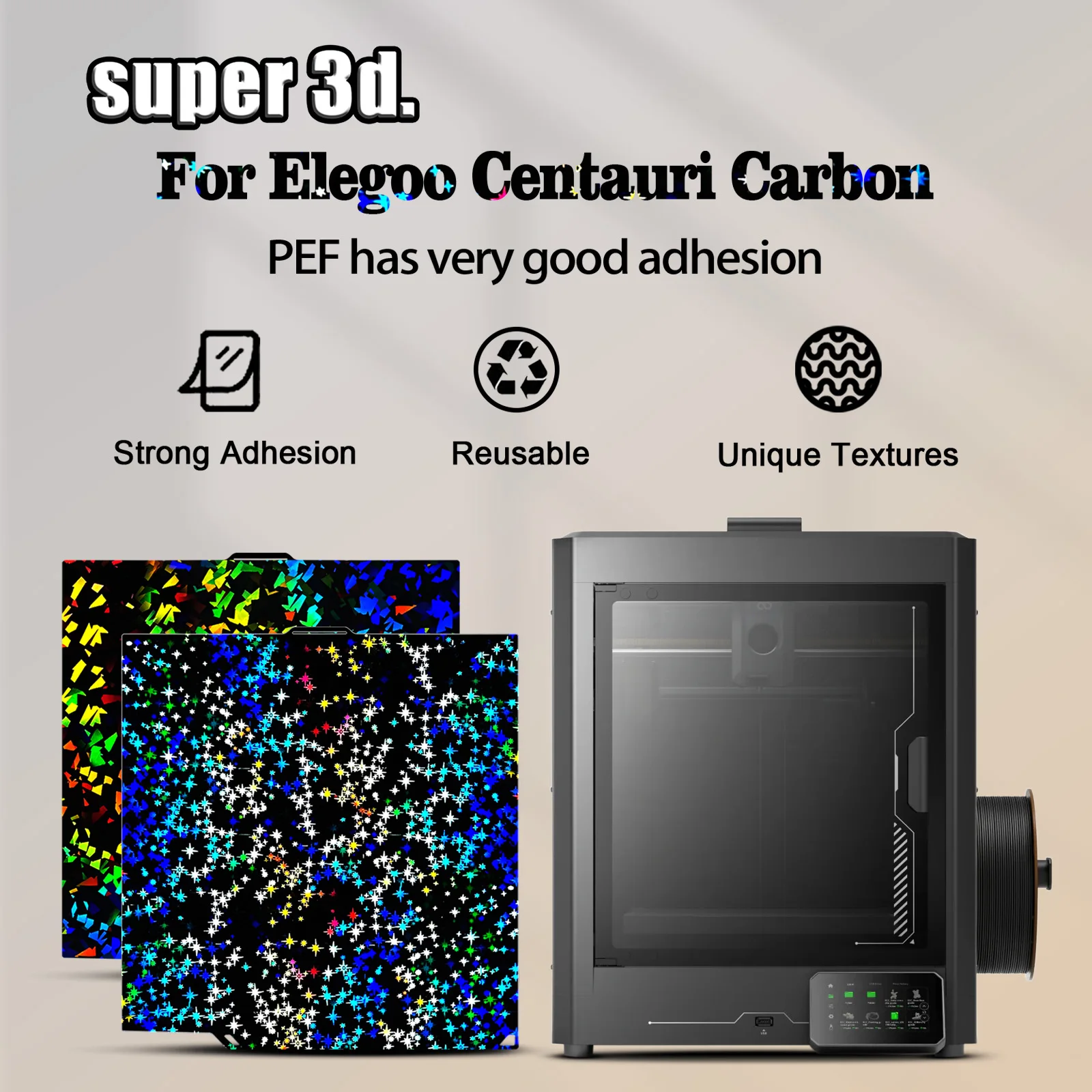

1. The PEF surface has colorful patterns, which is more novel and can leave colorful patterns on the surface of the model after printing

2. Both sides can be printed, and one hot bed can obtain two patterns

Disadvantages:

1. The star pattern on the surface of the model printed on the PEF surface may fade or disappear if wiped with hands or other greasy objects. The pattern can be reproduced by wiping the surface with wet tissues or alcohol

2. If the PEF surface prints ABS or PETG with warped edges, it needs to be sealed or coated with glue

Product instructions

1.PEO-PET

Recommended hot bed printing temperature: PEO surface PLA 50-70℃ PETG 70-80℃ TPU 30-50℃

PET surface PLA 50-70℃ PETG70-80℃ TPU 30-50℃

Recommended printing materials PEO/PET: PLA/PETG/TPU

If the printing consumables do not stick well, it is recommended to seal the box or apply glue on the hot bed to assist adhesion

2.PE

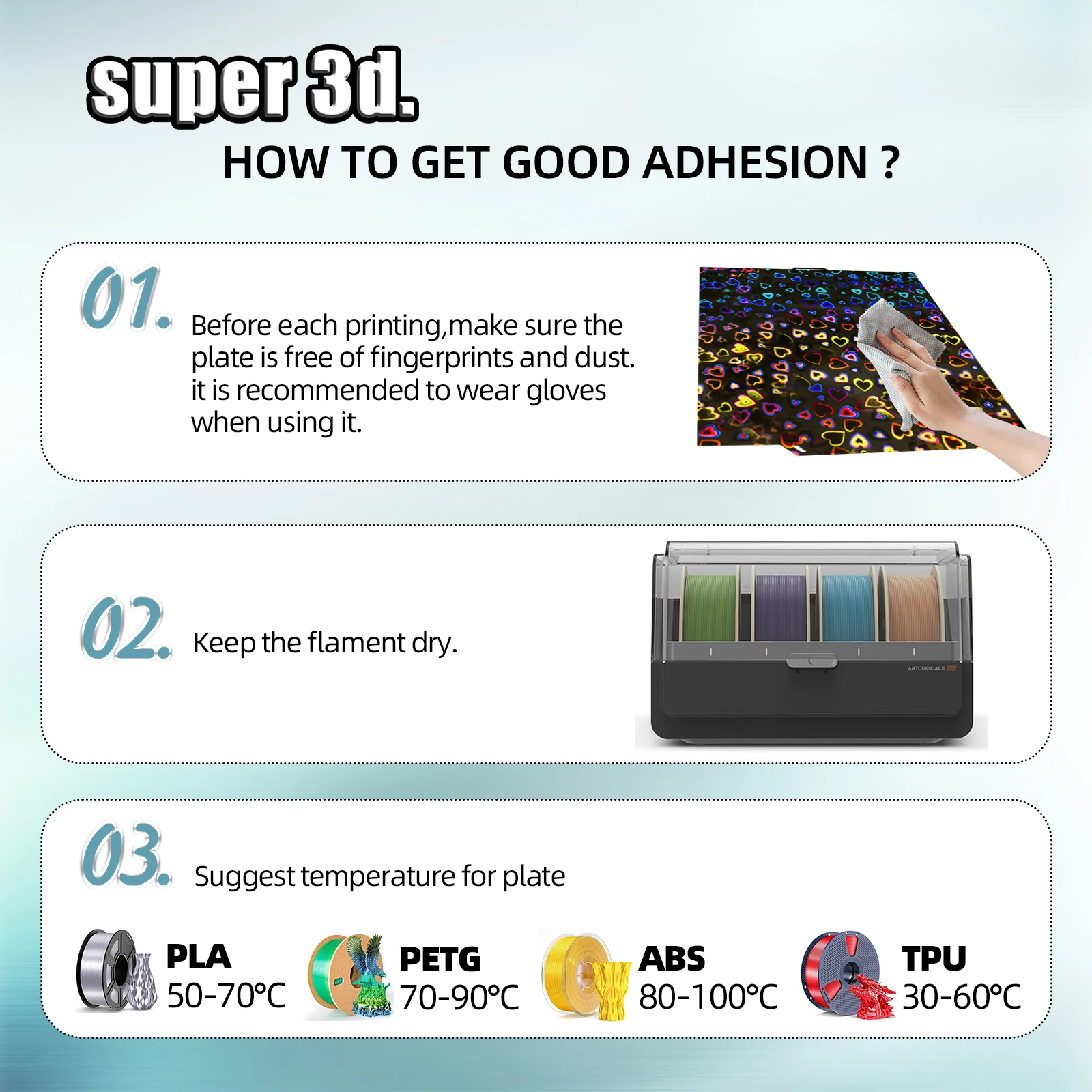

Recommended printing materials: PLA/PETG/ABS/TPU

Recommended hot bed printing temperature: PLA 50-70℃ PETG 70-90℃ ABS 80-100℃ TPU 30-60℃

If the printing materials are warped or sticky, you need to use sealing or solid glue to print

3.PE

Recommended printing materials: PLA/PETG/ABS/TPU

Recommended hot bed printing temperature: PLA50-70℃ PETG 70-90℃ ABS 80-100℃ TPU 30-50℃

If the printing materials are warped or sticky, you need to use sealing or solid glue to print

4.PE

Recommended printing materials: PLA/PETG/ABS/TPU

Recommended hot bed printing temperature: PLA 50-70℃ PETG 70-90℃ ABS 80-100℃ TPU 30-60℃

If the printing materials are warped or sticky, you need to use sealing or solid glue to print

Product drawings
